WARN 26502 M8000 8000-lb Winch

Description

Product Description

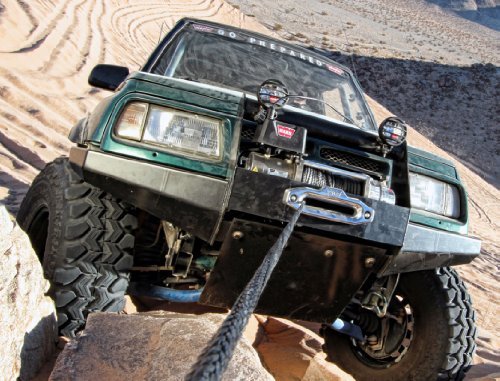

The M8000 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for plenty of mounting options, making it perfect for most trucks, Jeeps and SUVs. This is a compact, efficient and robust package that has a powerful 4.8 horsepower Series Wound motor and 3-stage planetary gear train. This winch includes 100-feet wire rope with a roller fairlead. Chip-resistant powder-coated finish. Limited lifetime warranty.

From the Manufacturer

Compact. Tough. An outstanding value. To be had with a roller or hawse fairlead and your selection of 80 or 100′ of 5/16″ diameter wire rope, the M8000 pulls a fast 8ft. per minute at rated load. The 4.8 hp Series Wound motor delivers big torque and power. Includes an all-weather remote Keep an eye on on a 12′ (3.7m) lead.

SPECIFICATIONS

• Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
• Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
• Remote Keep an eye on: Remote switch, 12′ (3.7m) lead
• Geartrain: 3-Stage Planetary
• Gear Ratio: 216:1
• Lubrication: Aeroshell #17
• Clutch (freespooling): Sliding Ring Gear
• Brake: Automatic Direct Drive Cone
• Drum Diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
• Weight: 74 lbs. (34 kgs.)
• Wire Rope: 80′, 5/16″ diam. (24m, 8mm diam.) or 100′, 5/16″ diam. (30m, 8mm diam.)
• Fairlead for PN 20910: Hawse
• Fairlead for PN 26502, 265022, 265032: Roller
• Recommended Battery: 650 CCA minimum for winching
• Battery Leads: 2 gauge, 72″ (1.83m)
• Finish: Argent Gray Powder Coat
• Nuts/Bolts: PN 39625
• Winch Dimensions: 21.04″ L. x 6.3″ D. x 7.6″ H. (534mm L. x 160m D. x 193mm H.)
• Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)

Be certain this fits by entering your model number.
Low-profile design and separate Keep an eye on box allows for a variety of mounting options
Powers load out and in by way of 100 ft of 5/16 in wire rope;Electrical controls: Contactor
Efficient, 3-stage planetary gear box and automatic direct drive cone brake system
Powerful 4.8 hp series wound motor, with a 8,000 lb pull rating and sliding ring gear freespooling grab
Electrical Keep an eye on box and hand-held remote with 12 ft (3.7m) lead
