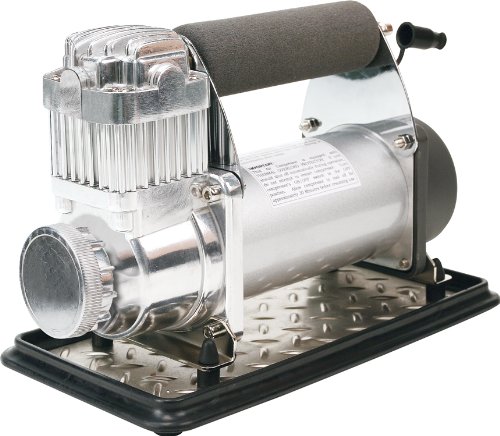

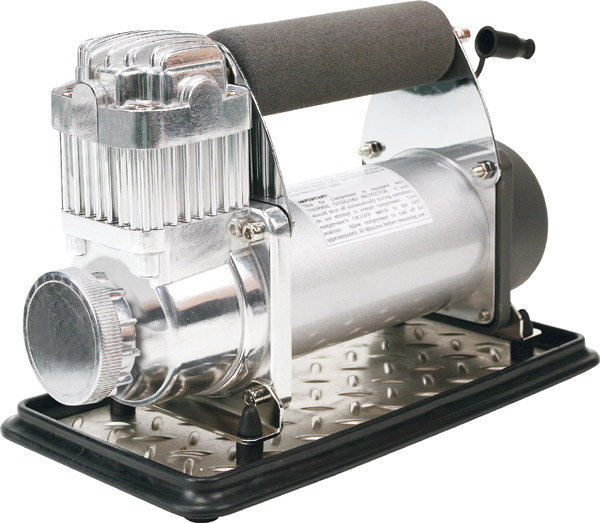

VIAIR 400P Portable Compressor

Portable air compression up to 150 PSI suitable for tires up to 35″. View larger.

All your portable compression needs are in the bag. View larger.

Heavy duty tray included for vibration keep watch over. View larger.

Portable Compression Stowed for the Road
The VIAIR 400P Portable Compressor offers inflation of up to 35-inch tires at a rapid rate, and operation at up to 150 PSI for up to 15 continuous minutes at a time, providing that there are 30 minutes provided afterwards for the unit to cool sufficiently. The unit is powered by an easy to establish temporary connection to a 12-volt battery power source via included alligator clamps. The 400P comes with an open-ended tire inflation hose with included 100 PSI air pressure gauge that offers the following functions: air up, air up intermittently, air down, air down intermittently and check tire pressure. To check tire pressure, simply turn off the portable compressor to halt inflation and check the pressure on the air pressure gauge. Additional parts provided include an inline fuse holder, a 8′ power cable, a heavy duty sand tray with vibration isolators and deluxe carry bag.

400P Air Compressor Specifications

• Motor voltage – 12 volt
• Motor type – Permanent magnetic
• Max. duty cycle: 33% @ 100 PSI
• Max. working pressure – 150 PSI
• Max. Amp draw – 30 Amps
• Max. ambient temperature – 158°F
• Min. ambient temperature – -40°F
• CFM @ 0 PSI – 2.54
• Inline pressure gauge – 100 PSI
• Dimensions – 11.25″L x 4.00″W x 7.00″H
• Net weight – 8.50 lbs

About Compressor Duty Cycle
Compressor duty cycle refers to amount of time a compressor can be operated in a given time period, at 100 PSI and at a standard ambient temperature of 72°F. Duty Cycle is commonly expressed in percentile as: compressor on time (compressor on time + off time) %. As an example, a compressor that is rated for 25% duty cycle means that compressor can be operated at: 100 PSI @ 72°F for 10 minutes on and 30 minutes off. 10 min. on / (10 min. on + 30 Min. off) = 10 min. / 40 Min = 25% duty cycle.

Fill Rates:

What’s in the Box

• 1-VIAIR 400P portable air compressor
• 1-Deluxe zippered carry bag with storage compartments
• 1-25′, 5-in-1 inflator/deflator open ended air hose with 120 PSI gauge
• 1-Heavy duty sand tray with vibration isolators
• 1-Set of dual heavy duty direct battery clamps
• 1-8′ power cable
• 1-3 piece inflation tips kit
• 1-Inline fuse holder
• 1-Owner’s manual

1-Year Limited Warranty
VIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one (1) year from its original date of purchase. This warranty covers product defects only. It does not cover incidental or consequential damages because of misuse or abuse.
